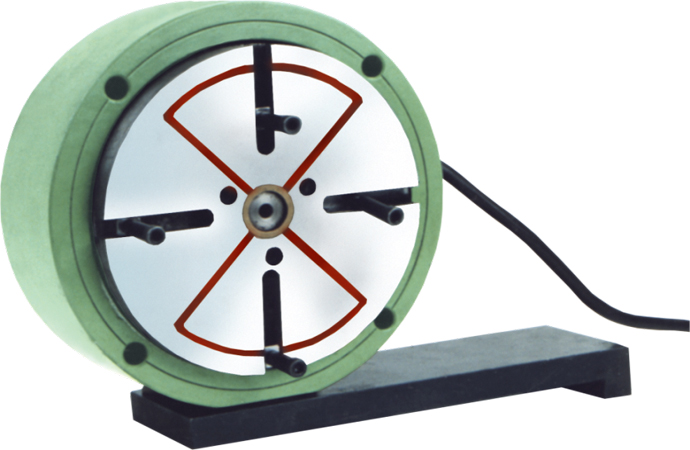

Series UL - 720

  • Work holding device on Cylindrical Grinding m/c to grind outer diameter & face component as bearing recess, flanges, collet bushes, discs etc.
  • Can also be used on Lathe machine.
  • Mag - D - Mag with variable control unit allows to neutralize the residual magnetism precisely.
  • Magnetic Coil ( outer body ) remains stationary & middle part ( Round body ) will rotate with spindle through adaptor sleeve.
  • Variable supply is useful to true the job.
  • 4 T-slots for easy location of job.
  • Chuck is tested for Slippering force, Temperature rise, Waterproof, Electrical & Demagnetizing tests.
  • Battery Back-up unit is also available on request

Sr. No. Cat No. Size ( mm )
1. UL- 72001 Ø 100 [ 4"]
2. UL- 72002 Ø 150 [ 6"]
3. UL- 72003 Ø 200 [ 8"]
4. ULTRA" Mag - D - Mag with variable control unit
