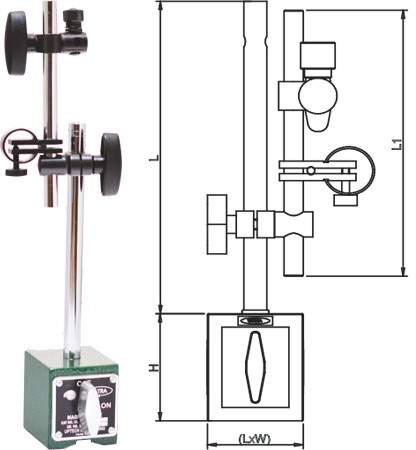

Series UL - 504

  • Used as a holding device for dial indicator.
  • Heavy & rigid construction of base & column.
  • Base V can be clamped to shaft.
  • Fine adjustment for accurate setting.
  • ON - OFF facility.

Sr. No. Series Code Size ( L x W x H ) ( mm / inch ) Overall Height
( mm )
Pull Force
( kgf )
Holding Stem Remark
1. UL-50412 60 X 50 X 60mm ( 1.38 X 1.18 X 1.38"2 ) 30mm ( 9.05" ) 55 DIA0.31”, Ø8mm With Fine Adjustment

request-quote
