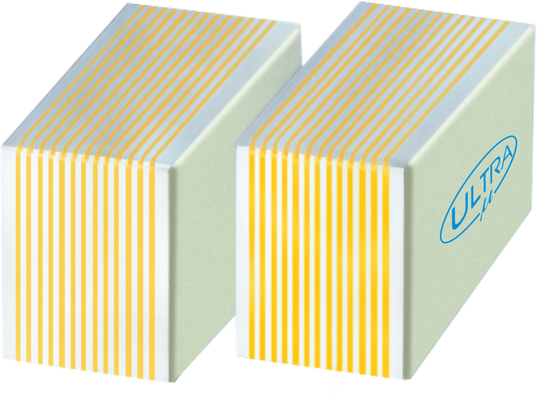

Series UL- 711 : For Horizontal Machining

  • Used as an accessory for magnetic chuck to clamp thin & odd shaped jobs.
  • Simplest method of extending the magnetic flux of magnetic chuck with parallel poles to support the job.
  • Maximum flux transformation when placed parallel to pole lines.
  • Perfectly ground within 5 Micron & supplied in matched pair.
Sr. No. Cat No. Size (mm)
1. UL 71101 50 W x 35 H x 100 L
2. UL 71102 60 W x 30 H x 75 L
3. UL 71103 50 W x 75 H x 75 L
4. UL 71104 50 W x 50 H x 100 L
5. UL 71105 80 W x 25 H x 120 L
