Roller Bearing V Blocks, Manufacturer, Supplier, Exporter, India

Series UL - 110

Used for checking heavy and odd shaped round jobs.
Perfectly matched pair. Accuracy : Paralality 12 micron for all series.
Included angle of rollers is 90°.

Standard bearings are used which are replaceable.
Jobs don't get damaged due to bearing on top.
Special sizes suitable for different diameter manufactured on request.

Sr. No.	Cat No.	Size Top ( mm )	Size Botom ( mm )	Height ( mm )	Range ( mm )	Load Capacity

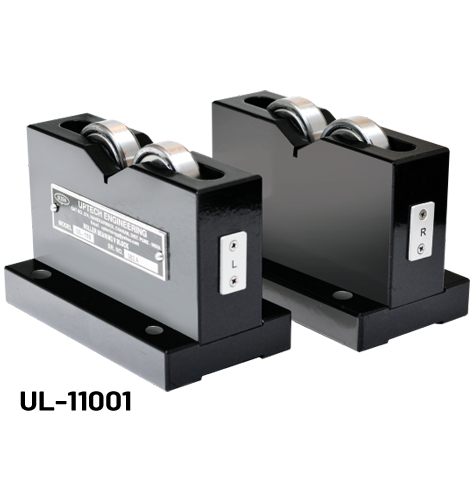

1.	UL-11001	150 L x 40W	150 L x 80W	100 H	Ø 3 - Ø 55	1000 Kgs
2.	UL-11002	150 L x 22W	150 L x 60W	100 H	Ø 25 -Ø 70	500 Kgs

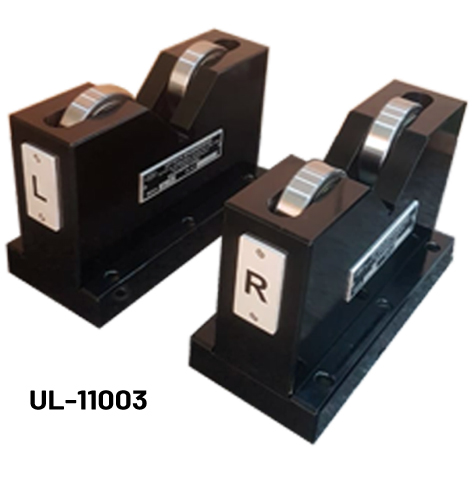

3.	UL-11003	230 L x 60W	230 L x100W	150 H	Ø 70 - Ø 200	1000 Kgs
