"ULTRA" Brand Magnetic Bases

“ULTRA” Brand Magnetic Base : Series UL - 504

• Used as holding device for dial indicator
• Base "V" can be clamped to shaft of Ø 20 to Ø 120.
• Fine adjustment for accurate settings.
• Powerful magnetic base holds firmly to ferrous surfaces vertically, horizontally, upside - down.
• ON - OFF facility.

Cat No.	Base Size ( mm )	Overall Height ( mm )	Pull
UL 50401	60 L x 50 W x 60 H	250	50 kg

"ULTRA" Brand Magnetic Bases : Series UL - 504

• Used as holding device for dial indicator.
• Heavy & rigid construction.
• Base V can be clamped to shaft of Ø 20 to Ø 120
• Fine adjustment for accurate setting.
• Can hold 8mm & 6mm stem diameter of dial.
• Two extension arms gives more flexibility in inspection.

Cat No.	Base Size ( mm )	Overall Height	Pull
UL 50403	56 L x 70 W x 70 H	220 mm	70 kg

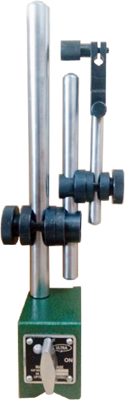

"ULTRA" Brand Magnetic Bases : Series UL - 504

• Used as holding device for dial indicator.
• Heavy & rigid construction.
• Base V can be clamped to shaft of Ø 20 to Ø 120
• Fine adjustment for accurate setting.
• Can hold 8mm & 6mm stem diameter of dial.
• Two extension arms gives more flexibility in inspection.

Cat No.	Base Size ( mm )	Overall Height ( mm )	Main Shaft ( mm )	Pulling Force kgf
UL 50405	70 L x 48 W x 64 H	275	Ø 18 x 210	70 kg

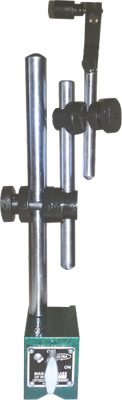

"ULTRA" Brand Magnetic Bases : Series UL - 504

• Used as holding device for dial indicator.
• Base V can be clamped to shaft of Ø20 to Ø120.
• Strong magnetic field, so it can be clamped to any part vertically & horizontally.
• ON-OFF facility.

Cat No.	Size ( L x W x H ) ( mm / inch )	Overall Height ( mm )	Pull Force ( kgf )	Holding Stem	Remark
UL-50411	60 X 50 X 60 mm ( 1.38 X 1.18 X 1.38" )	230 mm ( 9.05" )	55	DIA0.31", Ø8mm	Without Fine Adjustment
