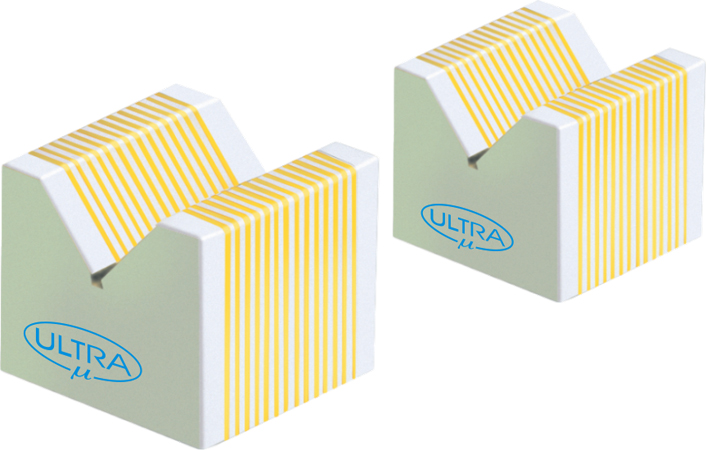

Series UL - 712

  • Used as an accessory for magnetic chuck to clamp thin & odd shape jobs.
  • Simplest method of extending the magnetic flux of magnetic chuck with parallel poles to support the job.
  • Maximum flux transformation when placed parallel to pole lines.
  • 90ยบ V provided for round job.
  • Perfectly ground within 5 micron & supplied in matched pair.
Sr. No. Cat No. Size (mm)
1. UL 71201 50 W x 60 H x 45 L
2. UL 71202 110 W x 60 H x 45 L
3. UL 71203 75 W x 65 H x 35 L
V Type Transfer Blocks, Magnetic Blocks and V Blocks request-quote
