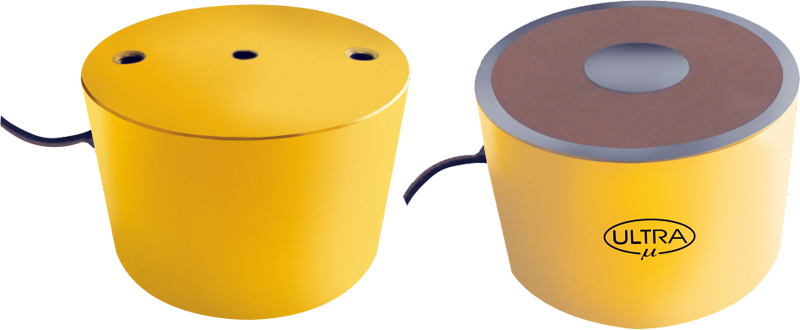

Series UL - 822

Suitable for pick and place application
Features

  • The Permanent magnet system of these holding magnets creates a magnetic field between the center pole and the outer border of the holding surface.
  • In addition to the permanent magnet, which creates the holding force, a coil is installed. When 24V= is applied to this switch - off coil a counter polemagnetic field is set up to neutralize the permanent magnetic field. As a result work - pieces can easily be removed.
  • These holding magnets will preferably be used when long - term holding times are required and tools should be loosened by switching on the coil for a short period.
Round Permanent Electric Holding Magnets, Round Permanent Electric Holding Magnets With Electrical Switch Off Magnets, Magnetic Chucks, Magnetic Products, Magnetic Lifter, Electromagnetic Lifter request-quote

Special Sizes Available on Request as per Application.

Sr. No. Cat No. Holding Surface Holding Force Minimum Thickeness
1. UL - 82203 Ø 64 mm 50 kg 4.5 mm
2. UL - 82204 Ø 70 mm 55 kg 6.0 mm
3. UL - 82205 Ø 90 mm 100 kg 7.5 mm
4. UL - 82206 Ø 120 mm 150 kg 7.5 mm
"ULTRA" CONTROL UNIT FOR ABOVE
